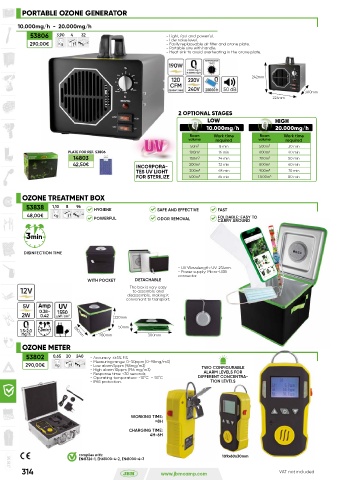

Page 314 - EN-CAT2022

PORTABLE OZONE GENERATOR

10.000mg/h - 20.000mg/h
53806 3,90 4 32 - Light, fast and powerful.
290,00€ - Low noise level.
- Easily replaceable air filter and ozone plate.
- Portable size with handle.
- Heat sink to avoid overheating in the ozone plate.

242mm

300mm
223mm

2 OPTIONAL STAGES
LOW HIGH
10.000mg/h 20.000mg/h
Room Work time Room Work time
volume required volume required
50m 3 8 min 500m 3 30 min
PLATE FOR REF. 53806 100m 3 16 min 600m 3 40 min
14803 150m 3 24 min 700m 3 50 min
42,50€ INCORPORA- 200m 3 32 min 800m 3 60 min
TES UV LIGHT 300m 3 48 min 900m 3 70 min
FOR STERILIZE 500m 3 65 min 1.000m 3 80 min

OZONE TREATMENT BOX
53838 1,10 8 96 HYGIENE SAFE AND EFFECTIVE FAST
48,00€
POWERFUL ODOR REMOVAL FOLDABLE: EASY TO
CARRY AROUND

3min

DISINFECTION TIME

- UV Wavelength: UV: 254nm.
- Power supply: Micro-USB
connector.
WITH POCKET DETACHABLE
The box is very easy
to assemble and
disassemble, making it
convenient to transport.

220mm
50mm
280mm 300mm
280mm
OZONE METER
53802 0,65 20 240 - Accuracy: ≤±5% F.S.
290,00€ - Measuring range: 0-50ppm (0-98mg/m3)
- Low alarm:5ppm (9.8mg/m3)
- High alarm:10ppm (19.6 mg/m3) TWO CONFIGURABLE
- Response time: <30 seconds ALARM LEVELS FOR
- Operating temperature: -10°C – 55°C DIFFERENT CONCENTRA-
- IP65 protection. TION LEVELS

WORKING TIME:
>8H
CHARGING TIME:
4H-6H

complies with: 109x60x30mm
EN61326-1, EN61000-4-2, EN61000-4-3
314 www.jbmcamp.com VAT not included
