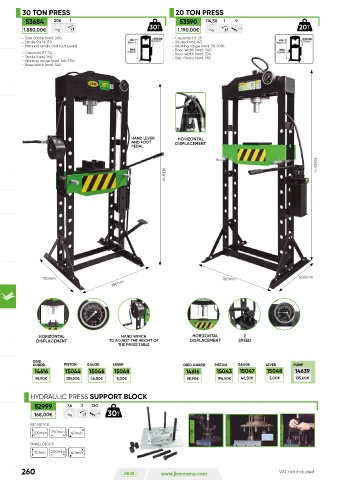

Page 260 - EN-CAT2022

30 TON PRESS 20 TON PRESS
53684 206 1 53590 114,50 1 9
1.880,00€ 30T 1.190,00€ 20T
- Side Stroke (mm): 200. - Capacity (T): 20.
- Stroke (mm): 150 - Stroke (mm): 145.
- Manual handle and foot pedal. - Working range (mm): 58-1018.
- Base width (mm): 540.
- Capacity (T): 30. - Inner width (mm): 536.
- Stroke (mm): 160. - Side Stroke (mm): 180.
- Working range (mm): 166-1126.
- Base width (mm): 540.

HAND LEVER HORIZONTAL
AND FOOT DISPLACEMENT
PEDAL 1838mm 1663mm

750mm 760mm 600mm
780mm

HORIZONTAL HAND WINCH HORIZONTAL 2
DISPLACEMENT TO ADJUST THE HEIGHT OF DISPLACEMENT SPEED
THE PRESS TABLE

GRID
GUARD PISTON GAUGE LEVER GRID GUARD PISTON GAUGE LEVER PUMP
14616 15044 15046 15048 14616 15043 15047 15048 14639
95,90€ 259,00€ 46,50€ 5,00€ 95,90€ 194,50€ 46,50€ 5,00€ 195,00€

HYDRAULIC PRESS SUPPORT BLOCK
52999 7,6 2 120
168,00€ 30T
BIG BLOCK
200mm 250mm 40mm

SMALL BLOCK
70mm 200mm 40mm
