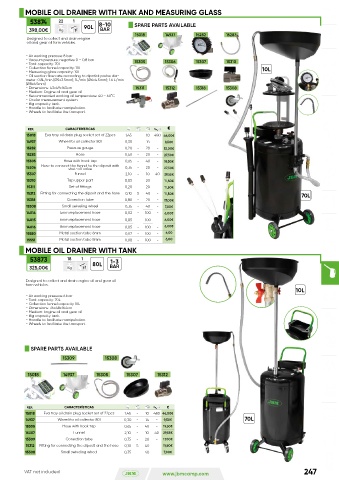

Page 247 - EN-CAT2022

MOBILE OIL DRAINER WITH TANK AND MEASURING GLASS
53874 22 1 8-10 SPARE PARTS AVAILABLE
398,00€ 90L BAR
15018 14937 15282 15283
Designed to collect and drain engine
oil and gear oil form vehicles.
10L
- Air working pressure 8 bar
- Vacuum pressure: negative 0 ~ 0.8 bar
- Tank capacity: 70L 15305 15306 15307 15310
- Collection funnel capacity: 10L 10L
- Measuring glass capacity: 10L
- Oil suction flow rate according to dipstick probe dia-
meter: 0.8L/min (Ø5x3.5mm); 1L/min (Ø6x4.5mm); 1.6 L/min
(Ø8x6.5mm)
- Dimensions: 43x49x163cm 15311 15312 15318 15308
- Medium: Engine oil and gear oil
- Recommended working oil temperature: 40 ~ 60°C
- Ocular measurement system.
- Big capacity tank.
- Handle to facilitate manipulation.
- Wheels to facilitate the transport.
REF. CARACTERÍSTICAS €
15018 Eva tray oil drain plug socket set of 22pcs 1,45 - 10 480 46,00€
14937 Wheel for oil collector 80l 0,30 - 14 - 9,50€
15282 Pressure gauge 0,20 - 20 - 15,00€
15283 Hose 0,40 - 20 - 27,50€
15305 Hose with hook tap 0,65 - 40 - 19,50€
Hose to connect the funnel to the diposit with
15306 shut-off valve 0,35 - 20 - 27,50€
15307 Funnel 2,10 - 10 40 39,55€
15310 Tap upper part 0,05 - 20 - 11,50€
15311 Set of fittings 0,20 - 20 - 11,50€
15312 Fitting for connecting the diposit and the hose 0,10 5 40 - 11,50€ 70L
15318 Conection tube 0,80 - 20 - 17,00€
15308 Small swiveling wheel 0,35 - 40 - 7,00€
14014 4mm replacement hose 0,02 - 100 - 6,00€
14015 6mm replacement hose 0,05 - 100 - 6,00€
14016 8mm replacement hose 0,05 - 100 - 6,00€
15550 Metal suction tube 6mm 0,07 - 100 - 6,00
15551 Metal suction tube 8mm 0,08 - 100 - 6,00
MOBILE OIL DRAINER WITH TANK
53873 18 1 1-3
325,00€ 80L BAR

Designed to collect and drain engine oil and gear oil
form vehicles.
10L
- Air working pressure 6 bar
- Tank capacity: 70L
- Collection funnel capacity 10L
- Dimensions: 35x48x163cm
- Medium: Engine oil and gear oil
- Big capacity tank.
- Handle to facilitate manipulation.
- Wheels to facilitate the transport.

SPARE PARTS AVAILABLE
15309 15308

15018 14937 15305 15307 15312

REF. CARACTERÍSTICAS €
15018 Eva tray oil drain plug socket set of 22pcs 1,45 - 10 480 46,00€
14937 Wheel for oil collector 80l 0,30 - 14 - 9,50€ 70L
15305 Hose with hook tap 0,65 - 40 - 19,50€
15307 Funnel 2,10 - 10 40 39,55€
15309 Conection tube 0,75 - 20 - 17,00€
15312 Fitting for connecting the diposit and the hose 0,10 5 40 - 11,50€
15308 Small swiveling wheel 0,35 - 40 - 7,00€

VAT not included www.jbmcamp.com 247
